+30 datasets. Um clique. Dentro do QGIS.

Acesse e baixe DEMs do Google Earth Engine diretamente no QGIS

Selecione seu AOI. Veja quais dos 32 datasets cobrem a região. Escolha, baixe, visualize no QGIS.

Como funciona

Um fluxo de três etapas para sair do mapa ao DEM carregado no QGIS, sem ferramentas externas.

Autentique no GEE

Clique em "Authenticate on GEE", insira o ID do seu projeto Google Cloud e conclua a autenticação.

Selecione AOI e dataset

Escolha a camada de polígonos que define sua área de interesse. Os datasets disponíveis para a região carregam automaticamente.

Baixe e visualize

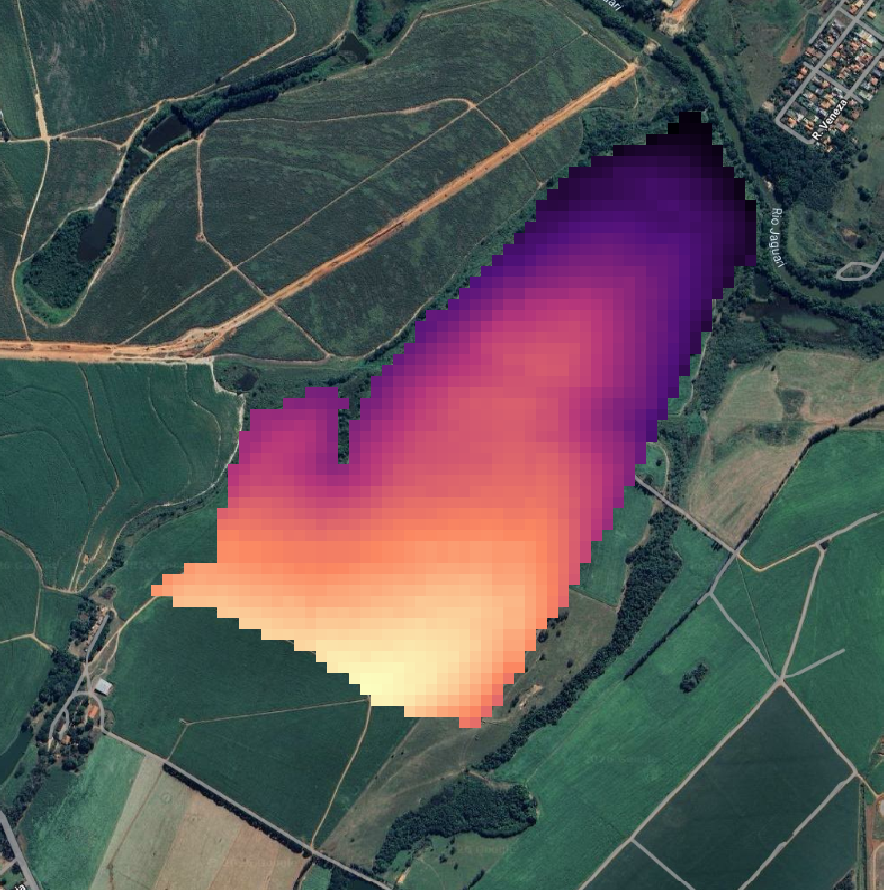

Selecione o dataset desejado e clique em "Download DEM". O raster é baixado e adicionado ao projeto com visualização pronta.

Google Earth Engine Setup

Five steps to set up Google Earth Engine and authenticate in the EasyDEM plugin.

Create a Google Earth Engine account

Create a Google Cloud project

Create a new project and link it to your GEE account.

Enable Earth Engine API

In Cloud Console, search for "Earth Engine API" and enable it. This allows the plugin to communicate with GEE.

Set your use case status

Google requires you to declare your use case (research, education, commercial, etc.).

Authenticate in EasyDEM

Open EasyDEM in QGIS, click "Authenticate on GEE", and enter your Cloud project ID. The plugin will guide you through OAuth confirmation.

Catálogo de datasets

Catálogo completo de 32 datasets globais e regionais de fontes consolidadas, com resoluções de 0,5m a 1800m. A disponibilidade é verificada automaticamente para sua AOI.

Dataset	Resolução	Cobertura	Provedor
Netherlands AHN2 0.5m (Interpolated)	0.5m	Netherlands	AHN / Rijkswaterstaat
Netherlands AHN2 0.5m (Non-interpolated)	0.5m	Netherlands	AHN / Rijkswaterstaat
Netherlands AHN2 0.5m (Raw Samples)	0.5m	Netherlands	AHN / Rijkswaterstaat
Netherlands AHN3 0.5m	0.5m	Netherlands	AHN / Rijkswaterstaat
Netherlands AHN4 0.5m	0.5m	Netherlands	AHN / Rijkswaterstaat
USGS 3DEP 1m	1m	USA (partial)	USGS
NEON DEM	1m	USA (NEON sites)	NSF NEON
England 1m Terrain (DTM)	1m	England (99%)	Environment Agency (UK)
France RGE ALTI 1m	1m	Metropolitan France	IGN France
ArcticDEM Mosaic V4.1 (2m)	2m	Arctic (50–90°N)	University of Minnesota PGC / NSF
ArcticDEM Strips V3 (2m)	2m	Arctic (50–90°N)	University of Minnesota PGC / NSF
REMA Strips v1 (2m)	2m	Antarctica (S of 60°S)	University of Minnesota PGC / NSF
Australia 5m DEM	5m	Australia	Geoscience Australia
REMA Mosaic v1.1 (8m)	8m	Antarctica (S of 60°S)	University of Minnesota PGC / NSF
REMA Strips v1 (8m)	8m	Antarctica (S of 60°S)	University of Minnesota PGC / NSF
USGS 3DEP 10m	10m	USA (all states)	USGS
Canadian Digital Elevation Model (CDEM)	23m	Canada	Natural Resources Canada
Copernicus GLO-30	30m	Global	ESA / Copernicus
NASADEM	30m	Global (60°N to 56°S)	NASA / USGS
SRTM GL1 v003	30m	Global (60°N to 56°S)	NASA / USGS
ASTER GDEM v3	30m	Global (83°N to 83°S)	NASA / METI (JAXA)
ALOS AW3D30 v4.1	30m	Global (82°N to 82°S)	JAXA
Greenland GIMP DEM	30m	Greenland	Ohio State University / NASA
Australia DEM-S (Smoothed)	30m	Australia	Geoscience Australia
Australia DEM-H (Hydrologically Enforced)	30m	Australia	Geoscience Australia
GLOBathy Global Lakes Bathymetry	30m	Global (1.4M lakes)	GLOBathy / sat-io
MERIT DEM v1.0.3	90m	Global (90°N to 60°S)	University of Tokyo
CGIAR SRTM v4	90m	Global (60°N to 56°S)	CGIAR-CSI
GMTED2010	250m	Global (84°N to 56°S)	USGS / NGA
GTOPO30	1000m	Global	USGS EROS
CryoSat-2 Antarctica DEM	1000m	Antarctica (S of 60°S)	ESA CryoSat-2 / CPOM
ETOPO1	1800m	Global (land + ocean)	NOAA NGDC
